ASA Maestro online Help

Event Editor

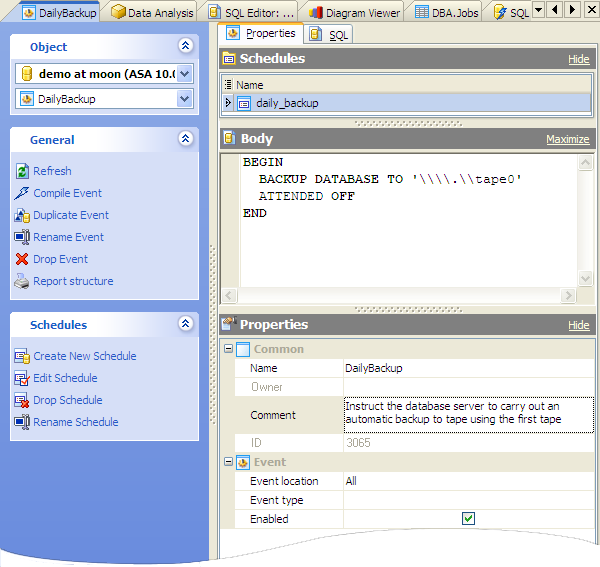

Event Editor allows you to edit all scheduled event properties, view the SQL statement for creating the event. It can be opened when you create a new scheduled event or edit the existing one (see How to edit event for details).

The basic principles of Object Editors in ASA Maestro are considered in the corresponding topic. See below to find the description of editor tabs that are unique to the current object.

See also: Create Event Wizard

Schedules

Determine here the frequency and the duration for the SQL statement defined for the event repeats. For more information see Schedule properties.

Body

The field contains the SQL statement executing within the scheduled event.

Name

The field contains the new scheduled event name as it was set on the previous step.

Comment

Specify a comment to the event or leave it blanc.

Event location (Consolidated, Remote, All)

If you want to execute events at remote or consolidated databases in a SQL Remote setup, you can use this clause to restrict the databases at which the event is handled. By default, all databases execute the event.

Event type

Select the event type from the listed set of system-defined event types.

server idle (ServerIdle): If the database contains an event handler for the event type, the database server checks for server activity every 30 seconds.

If the database contains an event handler for one of the Disk Space types, the database server checks the available space on each device associated with the relevant file every 30 seconds. Such event types are not supported on Windows CE.

- database disk space checked (DBDiskSpace): In the event the database has more than one dbspace, on separate drives, the event checks each drive and acts depending on the lowest available space.

- transaction log disk space checked (LogDiskSpace): The event type checks the location of the transaction log and any mirrored transaction log, and reports based on the least available space.

- temporary file disk space checked (TempDiskSpace): The event type checks the amount of temporary disk space.

If the appropriate event handlers have been defined (DBDiskSpace, LogDiskSpace, or TempDiskSpace), the database server checks the available space on each device associated with a database file every 30 seconds. Similarly, if an event has been defined to handle the system event type server idle (ServerIdle), the database server notifies the handler when no requests have been process during the previous 30 seconds.

- global autoincrement near end of range (GlobalAutoincrement): The event fires on each insert when the number of remaining values for a GLOBAL AUTOINCREMENT is less than 1% of the end of its range. A typical action for the handler could be to request a new value for the global_database_id option, based on the table and number of remaining values which are supplied as parameters to this event.

- mirror server disconnected (MirrorServerDisconnect), mirror failover (MirrorFailover) The MirrorServerDisconnect event fires when a connection from the primary database server to the mirror server or arbiter server is lost, and the MirrorFailover event fires whenever a server takes ownership of the database.

- backup completed (BackupEnd):  You can use the event type to take action at the end of a backup.

- database started (DatabaseStart): You can use the event type to take action when a database is started.

- user connected ("Connect"), connect failed (ConnectFailed): Connection events When a connection is made (Connect) or when a connection attempt fails (ConnectFailed). You may want to use these events for security purposes. As an alternative to a connect event handler, you may want to consider using a login procedure.

- user disconnect ("Disconnect"): You can use the event to take action when a user or application disconnects.

- database file extended (GrowDB), transaction log extended (GrowLog), temporary file extended (GrowTemp): The file reaches a specified size. This can be used for the database file (GrowDB), the transaction log (GrowLog), or the temporary file (GrowTemp).

- RAISERROR issued ("RAISERROR") When an error is triggered, you can use the RAISERROR event type to take actions.

Enabled

Uncheck the option to keep the event been created from being active. Alternatively, you may check it to make explicit the default status, which is active.
